H-MODULOR SYSTEM
H-Modular is a standardized, prefabricated system of civil works components that can be rapidly assembled using commonly available construction equipment.
FLOW: 100-25,000 CFS | HEAD: 10-50 FT.
Modular civil works for rapid, easy installation

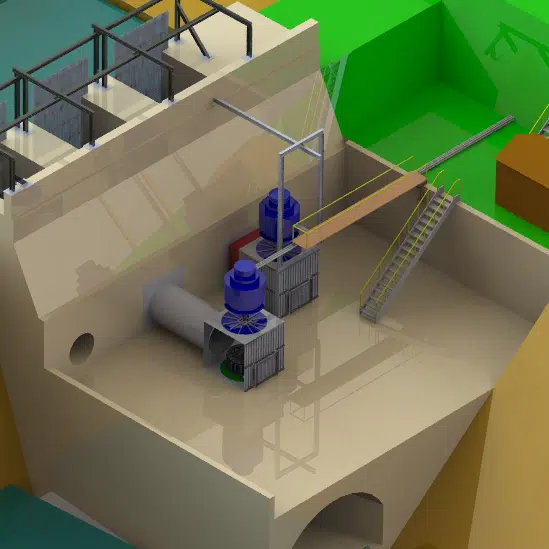

h-Modulor is a better way to build civil works, fish passages, and turbomachinery. Configurations include module stack, pressure box, and siphon options which make it easy to upgrade existing sites, power non-powered dams, and build greenfield hydropower. Each module configuration can be selected, configured, and arranged to achieve the power generation, sediment passage, fish passage, or recreation needs of the site. h-Modulor prefabricated components are selected, configured, and installed to fit a range of sites.

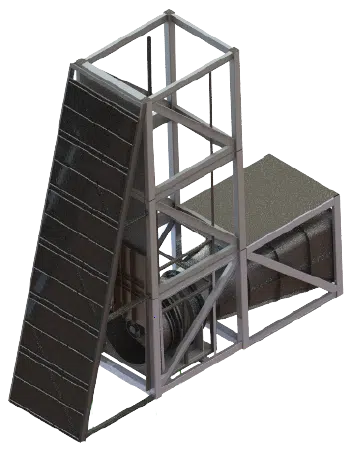

h-Modulor stacks are a better way to build or upgrade hydropower, delivering safe, low-cost development from 0.5-25 MW.
Modular civil works for rapid, easy installation
h-Modulor is a better way to build civil works, fish passages, and turbomachinery. Configurations include module stack, pressure box, and siphon options which make it easy to upgrade existing sites, power non-powered dams, and build greenfield hydropower. Each module configuration can be selected, configured, and arranged to achieve the power generation, sediment passage, fish passage, or recreation needs of the site. h-Modulor prefabricated components are selected, configured, and installed to fit a range of sites.
h-Modulor stacks are a better way to build or upgrade hydropower, delivering safe, low-cost development from 0.5-25 MW.

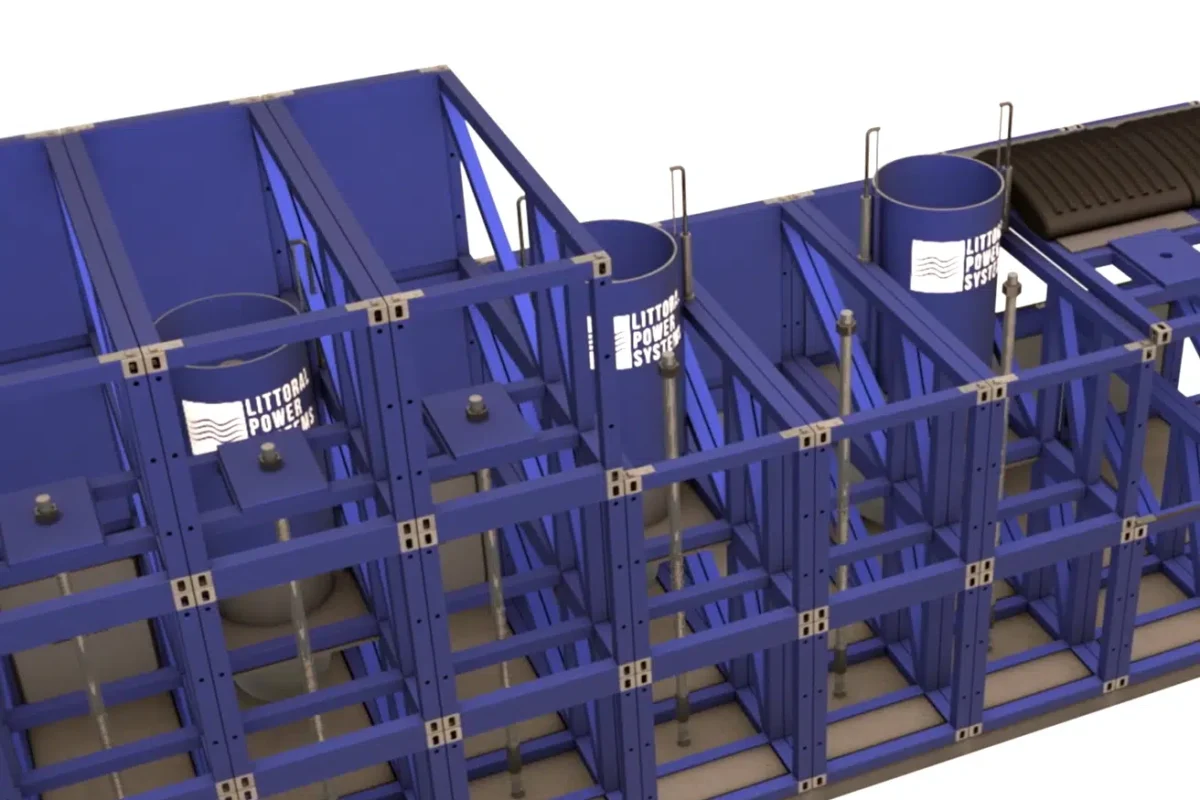

MODULE STACK | 1110
Selected and arranged to add power generation, fish passage, and other functions for 0.5-20 MW sites.
PRESSURE BOX | 1180
Drop into existing sites or connect to penstocks for fast installation.
SIPHON | 1190
Add to existing civil works such as irrigation drops to add power generation without entailing site dewatering.
System selection
Stack height varies by project head.
Module Type | 0-125 | 126-250 | 251-500 | 501-1000 | 1001-5000 |
|---|---|---|---|---|---|
Pressure Box | A | B | B | (2) B | 2=B
|
Siphon | 24″ | 40″ | 60″ | Multiple 60″ | |
Module Stack | Hm Small | Hm Small | Hm | Hm | Multiple Hm
|
